| Place of Origin: | China |
|---|---|
| Brand Name: | LUMING |
| Certification: | ISO9001, Patents,Work safety standardization certificate |
| Minimum Order Quantity: | 5 metric tons |
| Packaging Details: | Standard Export Wooden Pallet |
| Delivery Time: | Custom products 5-45 days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | Annual Production Exceeding 120,000 Metric Tons of All Types of Refractory Materials Including Castables, Preforms, and Bric |
| Al₂O₃ Content (%) ≥: | 45 | Fe₂O₃ Content (%) ≤: | 1.5 |
|---|---|---|---|
| Service Temperature (°C): | 1000 | Bulk Density (kg/m³): | 200-220 |
| Thermal Conductivity (W/m·K): | 0.12 (at 800°C) | Compression Resistance (%): | 30 |

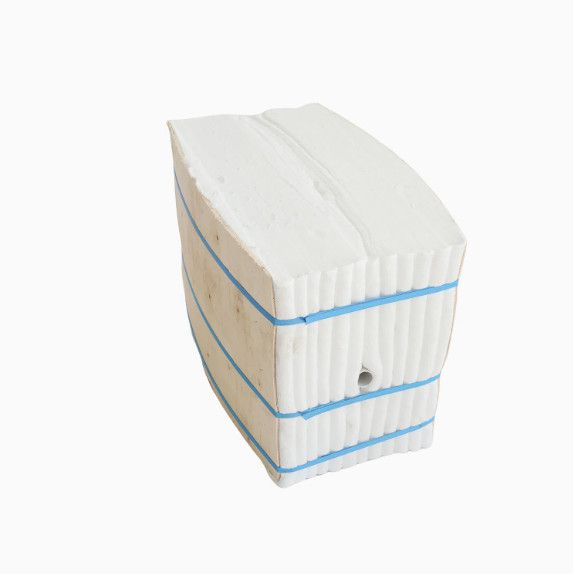

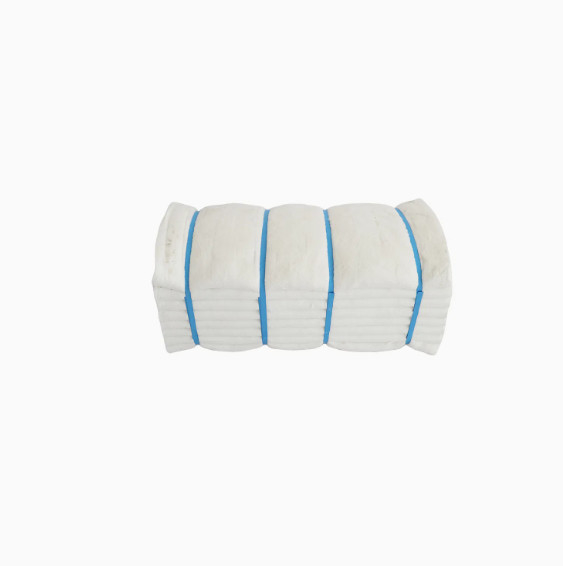

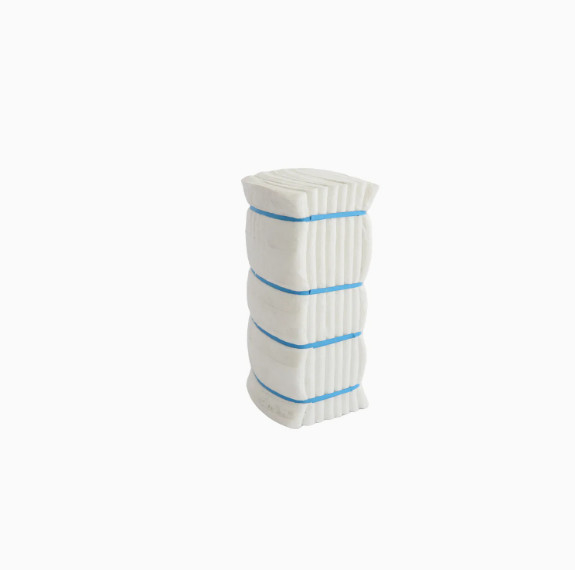

Ceramic Fiber Module
Product Introduction:
Ceramic Fiber Modules are pre-assembled refractory units composed of high-purity ceramic fibers, designed for quick and efficient installation in high-temperature industrial applications. These modules offer exceptional thermal insulation, energy efficiency, and resistance to thermal shock, making them ideal for lining furnaces, kilns, and other thermal processing equipment.
Product Parameters:
| Item | Standard Grade | High-Temperature Grade | Premium Grade |
| Al₂O₃ Content (%) ≥ | 45 | 60 | 72 |
| Fe₂O₃ Content (%) ≤ | 1.5 | 1.2 | 1.0 |
| Service Temperature (°C) | 1000 | 1260 | 1400 |
| Bulk Density (kg/m³) | 200-220 | 220-240 | 240-260 |
| Thermal Conductivity (W/m·K) | 0.12 (at 800°C) | 0.15 (at 1000°C) | 0.18 (at 1200°C) |
| Compression Resistance (%) | 30 | 25 | 20 |
Standard Sizes:
Module Dimensions: 300×300×300mm, 300×600×300mm (custom sizes available)
Anchor Types: Quick-installation studs, V-anchors, or custom designs
Folding Pattern: Accordion, layered, or as per customer specifications
Product Advantages:
Rapid Installation: Pre-folded modules reduce installation time by 50% compared to traditional refractory linings.
Energy Saving: Low thermal conductivity (≤0.15 W/m·K) minimizes heat loss, improving furnace efficiency.
Thermal Shock Resistance: Withstands temperature fluctuations up to 1400°C without cracking.
Long Service Life: Resistant to chemical corrosion from alkalis, acids, and molten metals.
Lightweight Design: 70% lighter than brick linings, reducing structural load.
Applications:
Metallurgy: Blast furnaces, annealing furnaces, ladle covers
Petrochemical: Cracking furnaces, reformers, pyrolysis units
Ceramics & Glass: Kiln car tops, crown insulation
Power Generation: Boiler walls, duct insulation
General Industry: Heat treatment furnaces, incinerators
Packaging & Storage:
Packaging: Waterproof plastic-wrapped pallets (20 modules/pallet) with corner protection
Storage: Keep in dry conditions (<60% humidity) on flat surfaces
Why Choose Us?
Turnkey Solutions: From design to installation support with CAD drawings and thermal calculations
Custom Engineering:
Material selection based on operating temperature (up to 1600°C)
Structural analysis for mechanical stress requirements
Quality Assurance:
ISO 9001 certified production
Third-party lab test reports available
For project-specific requirements or technical consultation, contact our engineering team today!
Note: All specifications subject to technical improvements. Consult latest datasheet before ordering.
