| Place of Origin: | China |
|---|---|
| Brand Name: | LUMING |
| Certification: | ISO9001, Patents,Work safety standardization certificate |
| Minimum Order Quantity: | 5 metric tons |
| Packaging Details: | Standard Export Wooden Pallet |
| Delivery Time: | Custom products 5-45 days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | Annual Production Exceeding 120,000 Metric Tons of All Types of Refractory Materials Including Castables, Preforms, and Bric |
| Classification Temperature (°C): | 1100 | Al₂O₃ Content (%): | ≥45 |
|---|---|---|---|
| Fe₂O₃ Content (%): | ≤1.5 | Bulk Density (kg/m³): | 280-320 |
| Thermal Conductivity (W/m·K) At 500°C: | 0.09 | Cold Crushing Strength (MPa): | ≥0.8 |
| Linear Shrinkage (%) After 24h At Max Temp: | ≤2.0 |

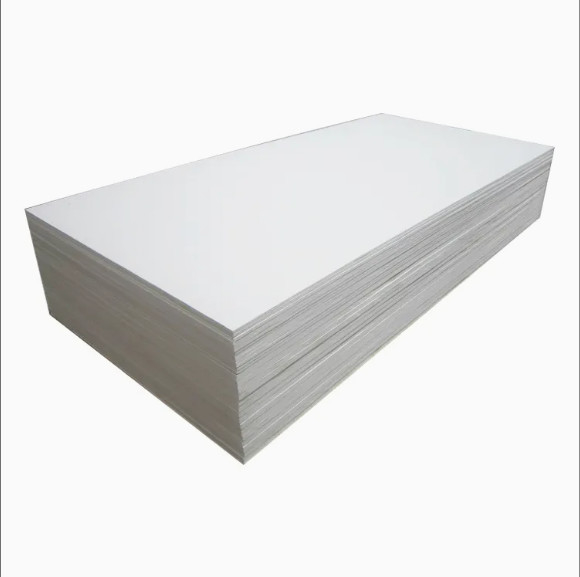

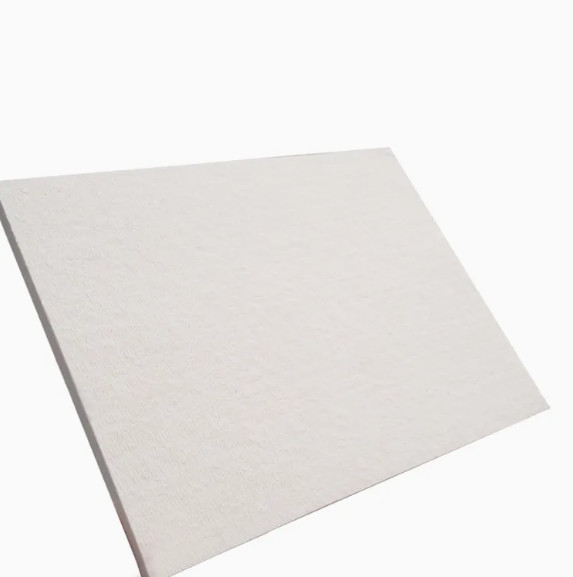

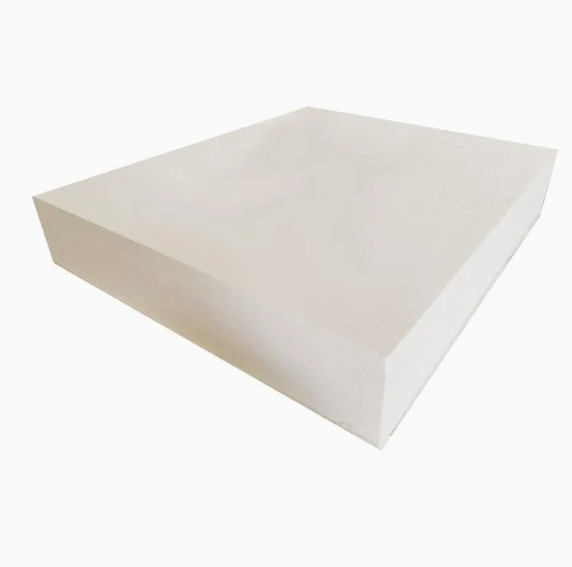

Ceramic Fiber Board Technical Specification
Product Introduction:
Ceramic fiber boards are high-performance refractory insulation products manufactured through a wet-forming process using high-purity alumina-silicate ceramic fibers and binders. These rigid boards combine excellent thermal insulation with exceptional mechanical strength, making them ideal for high-temperature applications up to 1430°C (2606°F).
Technical Parameters:
| Property | CFB-1100 | CFB-1260 | CFB-1430 |
| Classification Temperature (°C) | 1100 | 1260 | 1430 |
| Al₂O₃ Content (%) | ≥45 | ≥52 | ≥60 |
| Fe₂O₃ Content (%) | ≤1.5 | ≤1.2 | ≤1.0 |
| Bulk Density (kg/m³) | 280-320 | 300-350 | 320-380 |
| Thermal Conductivity (W/m·K) at 500°C | 0.09 | 0.10 | 0.11 |
| Cold Crushing Strength (MPa) | ≥0.8 | ≥1.0 | ≥1.2 |
| Linear Shrinkage (%) after 24h at max temp | ≤2.0 | ≤1.8 | ≤1.5 |
Standard Dimensions:
Thickness: 10mm, 20mm, 25mm, 50mm, 75mm
Panel Size: 600×900mm, 600×1200mm, 1000×1200mm
Custom sizes available with minimum order quantity
Key Advantages:
Superior Thermal Performance:
Ultra-low thermal conductivity (0.09-0.11 W/m·K at 500°C)
Energy savings up to 30% compared to traditional insulation
Excellent Mechanical Properties:
High compressive strength (0.8-1.2 MPa)
Maintains structural integrity under vibration and mechanical stress
Chemical Stability:
Resistant to most acids, alkalis, and corrosive gases
Non-wetting by molten aluminum and other non-ferrous metals
Installation Benefits:
Easy to cut and shape with standard woodworking tools
Can be machined to precise tolerances (±0.5mm)
Applications:
Foundry & Metal Processing: Ladle covers, tundish linings, furnace doors
Petrochemical: Flange insulation, reactor backup insulation
Power Generation: Boiler wall insulation, heat recovery systems
Glass & Ceramics: Kiln car tops, annealing lehr insulation
General Industry: High-temperature gaskets, expansion joints
Installation Guidelines:
Surface Preparation: Clean and dry substrate surface
Cutting: Use carbide-tipped tools for clean edges
Fixing Methods:
Mechanical fastening with ceramic washers/studs
High-temperature adhesives (silicone-based or ceramic cement)
Joint Treatment: Stagger joints and seal with ceramic fiber paper/rope
Quality Assurance:
ISO 9001:2015 certified manufacturing
Third-party inspection available
18-month quality guarantee
Packaging & Storage:
Standard: Wooden crates with waterproof wrapping
Storage: Keep in dry conditions (<65% RH) on flat surfaces
Why Choose Our Ceramic Fiber Boards?
Technical Expertise:
Over 15 years experience in ceramic fiber technology
R&D team available for application consulting
Custom Solutions:
Custom formulations for specific temperature/chemical requirements
CAD/CAM cutting services available
Customer Support:
Free technical consultation and sample service
24/7 emergency support for critical applications
Order Information:
MOQ: 10m² for standard sizes
Delivery: FOB/CIF terms available
For technical drawings or application engineering support, please contact our technical department.
