| Place of Origin: | China |
|---|---|
| Brand Name: | LUMING |
| Certification: | ISO9001, Patents,Work safety standardization certificate |
| Model Number: | DN-18，DN-18A |
| Minimum Order Quantity: | 5 metric tons |
| Packaging Details: | Standard Export Wooden Pallet |
| Delivery Time: | Custom products 5-45 days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | Annual Production Exceeding 120,000 Metric Tons of All Types of Refractory Materials Including Castables, Preforms, and Bric |
| Name: | Fire-clay Bottom Block | Shape: | Precast Block Or Brick |
|---|---|---|---|
| Bulk Density: | ≥2.3g/cm3 | Compressive Strength: | ≥60Mpa At 1100℃×3h |
| Characteristic: | Perfect High Hardness,high Refractoriness,high Anti-abrasive | Application: | Glass Furnace, Ladle, Pure Steel Furnace, Non-ferrous Metal Smelting Furnace And So On. |
| Highlight: | Low Porosity fireclay refractory brick,Bottom fireclay refractory brick,Furnace superior clay firebrick |
||

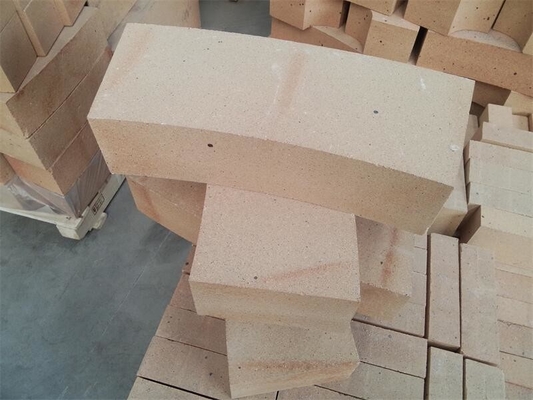

Low porosity fire clay brick
It is made of high quality hard clay,which which is formed by high pressure and sintered at high temperature.It has the characteristics of low porosity, high erosion resistance, high refractoriness under load,etc.It is normally used in the middle and lower part of the regenerator.
| Item | Fire-clay large block of glass furnace | |
| DN-18 | DN-18A | |
| Al2O3, ≥% | 44 | 44 |
| Fe2O3, ≤% | 1.8 | 1.5 |
| SiO2, ≤% | 50 | 52 |
| Bulk Density, ≥g/cm³ | 2.25 | 2.3 |
| Apparent Porosity ,≤% | 18 | 16 |
| Compressive strength, ≥Mpa | 40 | 60 |
| 0.2Mpa Refractoriness under load, ≥℃ | 1350 | 1450 |
Size:
Common shape:
230X114X75,230X114X65,230x114x32mm,230x114x40mm,230x1114x50mm,
300X400X75mm
Special shape:
Side arch 230x114x75/70
Side arch 230x114x75/65
End wedge 230x114x75/70
End wedge 230x114x75/65
As per customers’ request and drawings to manufacture.
Contact us:0086-18905335290
Characteristic:
Low porosity
Good thermal stability
Perfect molten Slag corrosion resistance
Excellent glass liquid corrosion resistance
High temperature performance
High temperature abrasion resistance
High Refractoriness under load
High Hardness
Excellent chemical stability
High Temperature Resistance and Perfect Thermal Shock Resistance
Excellent Corrosion resistance
High Strength
High Refractoriness
Excellent Chemical Corrosion Resistance
High Compressive Strength
Low Thermal Expansivity
Application:
Iron and steel industry,
non-ferrous metals,
building materials industry,
glass industry,
petrochemical industry,
electric power industry
machinery manufacturing industry
pellet, lime, calcined dolomite, ferroalloy, lithium salt, chemical and other rotary kilns
Packaging and shipping:
1. Strong packing will protect the goods from any possible damage during transit.
2. Solid packing and overall stuffing can prevent the cases from vibration and jarring.
3. We must take necessary precaution that the packing can protect goods from pilferage or rain.
4. We can confirm that we take every possible precaution to ensure that our products reach our customers all over the world in prime conditon.
1. Carton packaging +Pallet
2. tray + plastic film + fixed band .
3. pallets: 1*1m,0.93*0.93m .
4. tray weight: 1.6~2.0ton.
5. packaging according to customer service requirement
