| Place of Origin: | China |
|---|---|
| Brand Name: | LUMING |
| Certification: | ISO9001, Patents,Work safety standardization certificate |
| Model Number: | CZM-20,ZM-12,ZM-20,ZM-30 |
| Minimum Order Quantity: | 5 metric tons |
| Packaging Details: | Standard Export Wooden Pallet |
| Delivery Time: | Custom products 5-45 days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | Annual Production Exceeding 120,000 Metric Tons of All Types of Refractory Materials Including Castables, Preforms, and Bric |
| Name: | Zirconia Mullite Brick | Shape: | Precast Block Or Brick |
|---|---|---|---|
| Bulk Density: | ≥3.1g/cm3 | Compressive Strength: | ≥70Mpa At 1100℃×3h |
| Characteristic: | Perfect High Hardness,high Refractoriness,high Anti-abrasive | Application: | Glass Furnace, Ladle, Pure Steel Furnace, Non-ferrous Metal Smelting Furnace And So On. |
| Highlight: | zircon mullite refractory bricks,Sintering mullite refractory bricks,Zirconia Mullite brick |
||

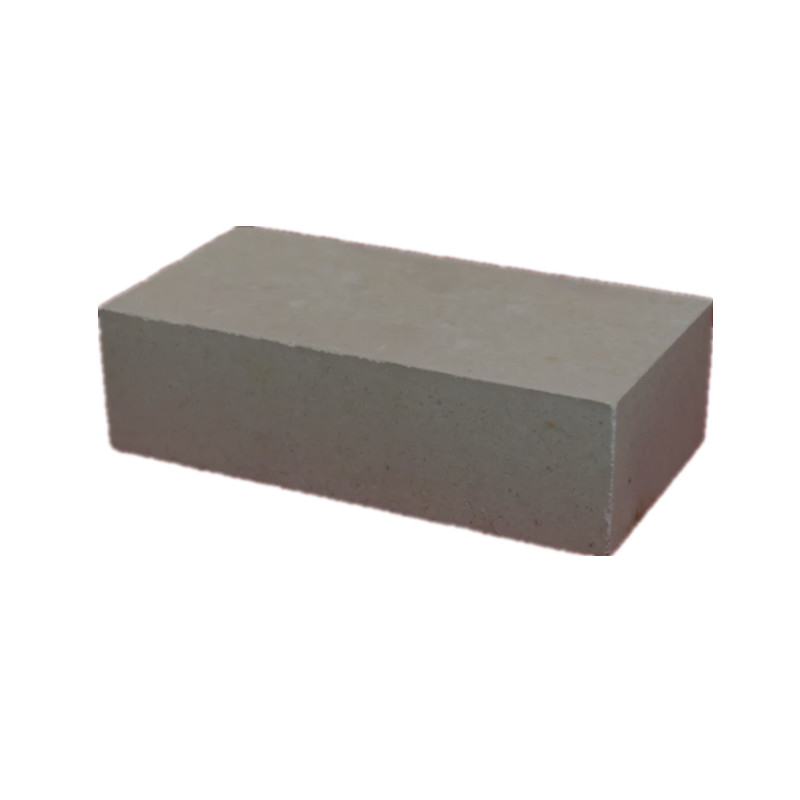

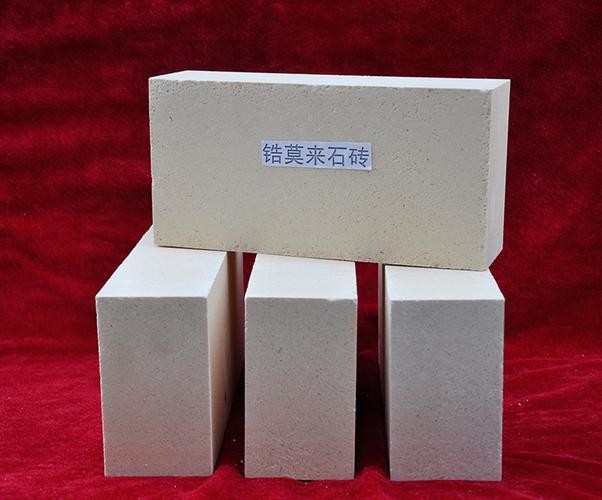

Zirconia mullite products
The product is mainly made of fused zirconia mullite and fused AZS. It uses scientific and reasonable particle grading ,which is formed by high pressure and sintered at high temperature.
It has the characteristics of excellent high temperature resistance, erosion resistance, thermal shock resistance, creep resistance and so on.
| Item | Pouring Zirconia Mullite block |
| CZM-20 | |
| Al2O3, ≥% | 65 |
| SiO2, ≤% | 12 |
| Fe2O3, ≤% | 0.3 |
| ZrO2, ≥% | 19 |
| Bulk Density, ≥g/cm³ | 2.85-3.2 |
| Apparent Porosity ,≤% | 20 |
| Compressive strength, ≥Mpa | 80 |
| 0.2Mpa Refractoriness under load, ≥℃ | 1650 |
| Item | Sintering Zirconia Mullite brick | ||
| ZM-12 | ZM-20 | ZM-30 | |
| Al2O3, ≥% | 75 | 66 | 53 |
| Fe2O3, ≤% | 0.3 | 0.3 | 0.3 |
| ZrO2, ≥% | 12 | 20 | 30 |
| Bulk Density, ≥g/cm³ | 3.1 | 3.1 | 3.1 |
| Apparent Porosity ,≤% | 18 | 18 | 18 |
| Compressive strength, ≥Mpa | 70 | 100 | 100 |
| 0.2Mpa Refractoriness under load, ≥℃ | 1640 | 1650 | 1650 |
Contact us:0086-18905335290
Characteristic:
Good thermal stability
Perfect molten Slag corrosion resistance
Excellent glass liquid corrosion resistance
High temperature performance
High temperature abrasion resistance
High Refractoriness under load
High Hardness
Excellent chemical stability
High Temperature Resistance and Perfect Thermal Shock Resistance
Excellent Corrosion resistance
High Strength
High Refractoriness
Excellent Chemical Corrosion Resistance
High Compressive Strength
Low Thermal Expansivity
Application:
Iron and steel industry,
non-ferrous metals,
building materials industry,
glass industry,
petrochemical industry,
electric power industry
machinery manufacturing industry
pellet, lime, calcined dolomite, ferroalloy, lithium salt, chemical and other rotary kilns
Zirconia mullite refractory brick are widely used in non-metallic materials industry, petrochemical industry, steel smelting, military industry, electronics industry and other fields. silicon steel heating furnace lining in metallurgical industry, thermal insulation lining of high-temperature equipment of hydrogen production furnace and gasifier in petroleum industry, thermal insulation lining of cemented carbide intermediate frequency furnace, etc.
